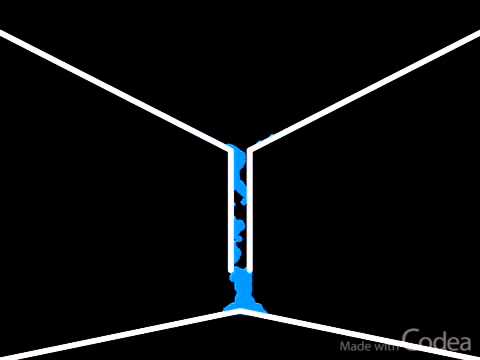

Realistic 2D Water Effect

edited July 2013 in General Posts: 2,820

Hello,
I made this as a prototype for a new type of object in my game, so here's the code:

displayMode(FULLSCREEN)

function setup()
    parameter.watch("1/DeltaTime")
    fixtures = {}
    local gSize = vec2(WIDTH,HEIGHT/2)
    local gScale = 5
    local funnleSize = 20
    funnle1 = physics.body(CHAIN,false,vec2(-gSize.x,gSize.y),
                                vec2(-funnleSize,-gSize.y/3),
                                vec2(-funnleSize,-gSize.y)
                                )
    local funnle2 = physics.body(CHAIN,false,vec2(gSize.x,gSize.y),
                                vec2(funnleSize,-gSize.y/3),
                                vec2(funnleSize,-gSize.y)
                                )
    local split = physics.body(CHAIN,false,vec2(-WIDTH/2,-HEIGHT/8),
                                vec2(0,HEIGHT/80),
                                vec2(WIDTH/2,-HEIGHT/8)
                                )
    funnle1.x = WIDTH / 2
    funnle1.y = HEIGHT - HEIGHT / 4
    funnle1.type = STATIC
    funnle2.x = WIDTH / 2
    funnle2.y = HEIGHT - HEIGHT / 4
    funnle2.type = STATIC
    split.x = WIDTH / 2
    split.y = HEIGHT/8
    split.type = STATIC
    --split.restitution = .5
    table.insert(fixtures,funnle1)
    table.insert(fixtures,funnle2)
    table.insert(fixtures,split)

    blankImage = image(WIDTH,HEIGHT)
    blur = 30
    water = {}
    waterimage = softImage(color(0, 155, 255),5,blur)
    allWater = blankImage

    --[[waterMesh = mesh()
    waterMesh.texture = waterimage]]--

    mDisplay = mesh()
    mDisplay:addRect(WIDTH/2,HEIGHT/2,WIDTH,HEIGHT)
    mDisplay.shader = shader(alphaThreshold())
    mDisplay.shader.smoothness = 0
    mDisplay.shader.threshold = .1
    mDisplay.shader.unpremultiply = 1
end


function draw()
    background(0, 0, 0, 255)
    physics.gravity(Gravity)
    smooth()

    setContext(allWater)
    background(0, 0, 0, 0)
    noStroke()
    smooth()
    --for i,v in ipairs(water) do
    for i = #water,1,-1 do
        v = water[i]
        sprite(waterimage,v.body.x,v.body.y,blur,blur)
        --waterMesh:addRect(v.body.x,v.body.y,blur*extraSpace,blur*extraSpace)
        if v.body.x <= 0 or v.body.x >= WIDTH or v.body.y <= 0 or v.body.y >= HEIGHT then
            v.body:destroy()
            table.remove(water,i)
        end
    end

    --waterMesh:draw()
    --waterMesh:clear()
    setContext()

    mDisplay.texture = allWater
    mDisplay:draw()

    strokeWidth(12)
    for i,v in ipairs(fixtures) do
        pushMatrix()
        translate(v.x,v.y)
        local points = v.points
        for j = 1,#points-1 do
            a = points[j]
            b = points[(j % #points)+1]
            line(a.x, a.y, b.x, b.y)
        end
        popMatrix()
    end
    popMatrix()
end

function touched(t)
    addWater(10,t.x,t.y)
end

function softImage(f,r,s)
    simg = image(r,r)
    setContext(simg)
    pushStyle()
    noStroke()
    fill(f)
    ellipse(simg.width/2,simg.height/2,simg.width)
    popStyle()
    setContext()
    limg = image(s,s)
    setContext(simg)
    pushStyle()
    smooth()
    sprite(simg,0,0,s,s)
    popStyle()
    setContext()
    return simg
end

function addWater(amnt,x,y)
    local posRand = 20
    local vRand = 0
    for i = 1,amnt do
        local b = physics.body(CIRCLE,3)
        b.x = x + math.random(-posRand,posRand)
        b.y = y + math.random(-posRand,posRand)
        b.linearVelocity = vec2(math.random(-vRand,vRand),math.random(-vRand,vRand))
        b.restitution = .1
        table.insert(water,{body = b})
    end
end

function alphaThreshold()
    return [[
    //
// A basic vertex shader
//

//This is the current model * view * projection matrix
// Codea sets it automatically
uniform mat4 modelViewProjection;

//This is the current mesh vertex position, color and tex coord
// Set automatically
attribute vec4 position;
attribute vec4 color;
attribute vec2 texCoord;

//This is an output variable that will be passed to the fragment shader
varying lowp vec4 vColor;
varying highp vec2 vTexCoord;

void main()
{
    //Pass the mesh color to the fragment shader
    vColor = color;
    vTexCoord = texCoord;

    //Multiply the vertex position by our combined transform
    gl_Position = modelViewProjection * position;
}
]],
[[

precision highp float;

uniform lowp sampler2D texture;

uniform float threshold;
uniform float smoothness;
uniform float unpremultiply;

varying lowp vec4 vColor;

varying vec2 vTexCoord;

void main()
{
    lowp vec4 color = texture2D( texture, vTexCoord ) ;
    if( unpremultiply > 0.0 ) { color.rgb /= color.a ; }

    float range = ( color.a - (1.0 - threshold) - (smoothness * 0.05) ) / (0.0001 + smoothness * 0.1) ;
    color.a = smoothstep( 0.0, 1.0, range ) ;
    color.rgb *= color.a ;

    gl_FragColor = color ;
}]]
end
